High tensile, impact, abrasion and indentation resistance
PP Anti-Corrosion Tape
Polypropylene Fiber-Reinforced Anti-Corrosion Tape
A polypropylene mesh-reinforced tape combining a woven fiber substrate with a high-tack, thick adhesive layer.
Overview
System role and composition
Mechanically reinforced pipeline protection tape
- Polypropylene mesh-reinforced woven fiber substrate
- High-tack thick adhesive layer based on butyl rubber or PIB-modified bitumen
Key advantages
Approved product and system characteristics
Statements below apply only to this product or stated system and must be read with the listed conditions and qualifiers.
Resistance to soil-stress creep deformation
Conforms around spiral weld profiles
Single-pass application where specified
UV-aging and chemical resistance
Electrical insulation
Typical applications
Where this solution is considered
- Buried pipelines
- Storage tanks and associated fittings
- Spiral-weld pipeline profiles
Typical Sizes and Packaging
- Thickness: 1.0–2.0 mm
- Width: 50–300 mm
- Length: 15 / 20 m per roll
Product formats, packaging and available grades may vary by application and order requirements. Please confirm the current configuration with our team.
Installation overview
Confirm the complete procedure before work begins
- Inspect the substrate, geometry, existing coating and service environment.
- Prepare the surface to the requirement stated for the selected system.
- Apply the compatible primer or profiling material where the system calls for it.
- Install the primary tape with the specified overlap, tension and termination treatment.
- Add compatible outer protection where required, then inspect continuity and terminations.
Matching components
This overview supports early evaluation. The current TDS and approved project procedure remain the controlling installation documents.

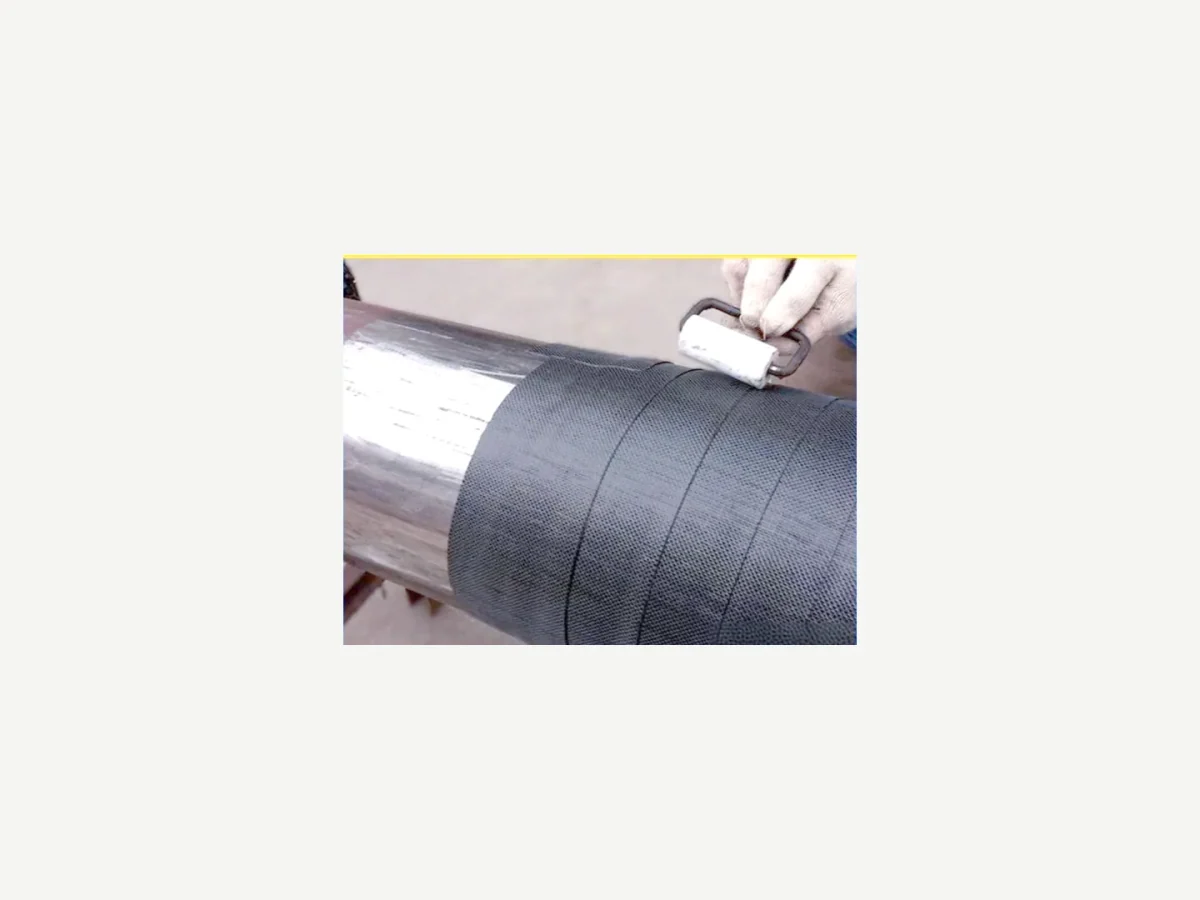

Gallery
Product and application views
Related applications
Continue from product to asset
Technical documents
Request the documents relevant to your evaluation
Product catalog, technical data, safety information and installation guidance are supplied according to the selected product and application.
Content source: Zhuohuang Technical Data Sheets UAE 2026 (primary); Zhuohuang Product Catalogue UAE 2026 (secondary).
Frequently asked questions
What provides the mechanical reinforcement?
The substrate is a polypropylene mesh-reinforced woven fiber structure.
Can it follow spiral welds?
Yes. The documented product description states that it conforms around spiral weld profiles.
