Tank Edge Corrosion Protection
Oiltanking Storage Tank Edge Protection Project
A cold-applied petrolatum tape system was used to protect the movement-sensitive interface between the storage tank shell and concrete foundation.
- Client
- Oiltanking
- Industry
- Oil Storage / Petrochemical Storage
- Location
- Qingdao, Shandong, China
- Project date
- 5 November 2021
- System
- Petrolatum Primer / Elastic / Profiling Mastic / Petrolatum Tape / Metal Protective Outer Wrap / Outer Wrap Primer / Elastomeric Finishing Layer
Verified project record
Project overview
Application and project record
- Client
- Oiltanking
- Industry
- Oil Storage / Petrochemical Storage
- Asset type
- Aboveground Storage Tank
- Protection system
- Petrolatum Primer / Elastic / Profiling Mastic / Petrolatum Tape / Metal Protective Outer Wrap / Outer Wrap Primer / Elastomeric Finishing Layer
- Location
- Qingdao, Shandong, China
- Project date
- 5 November 2021
Project summary
Scope and application context

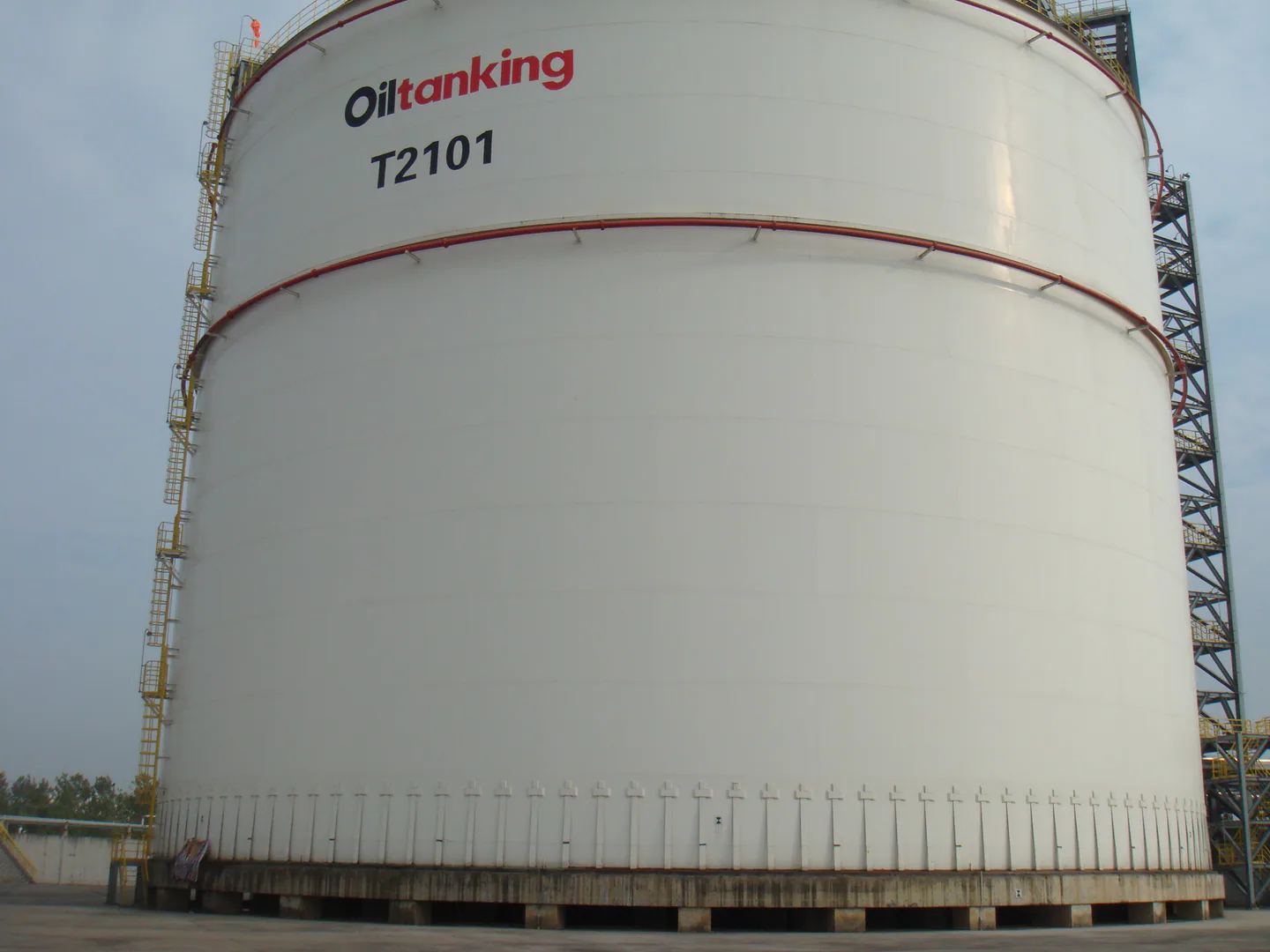

This project involved corrosion protection work at the bottom edge of storage tanks at an Oiltanking facility in Qingdao, China. The interface between the tank shell, annular edge area and concrete foundation is exposed to water ingress, coating deterioration and movement associated with changing tank operating conditions. Zhuohuang supplied a cold-applied petrolatum tape system designed for this irregular and movement-sensitive area.
Project challenge
Protection requirement
The tank shell-to-foundation interface contained transitions, gaps and existing coating areas that required a flexible protection approach. The system needed to conform to the edge geometry, seal vulnerable interfaces and accommodate movement between the tank structure and foundation without relying on hot-applied installation.
System used
Cold-applied protection system
- Petrolatum Primer
- Elastic / Profiling Mastic
- Petrolatum Tape
- Metal Protective Outer Wrap
- Outer Wrap Primer
- Elastomeric Finishing Layer
Installation process
Recorded application sequence
- Surface inspection and removal of loose contamination and deteriorated material.
- Preparation of the tank shell and concrete foundation interface.
- Application of petrolatum primer.
- Filling of gaps and formation of a smooth transition using elastic profiling mastic.
- Installation of petrolatum tape across the protected edge area.
- Installation of the metal protective outer wrap.
- Application of the confirmed outer finishing layers.
Project evidence

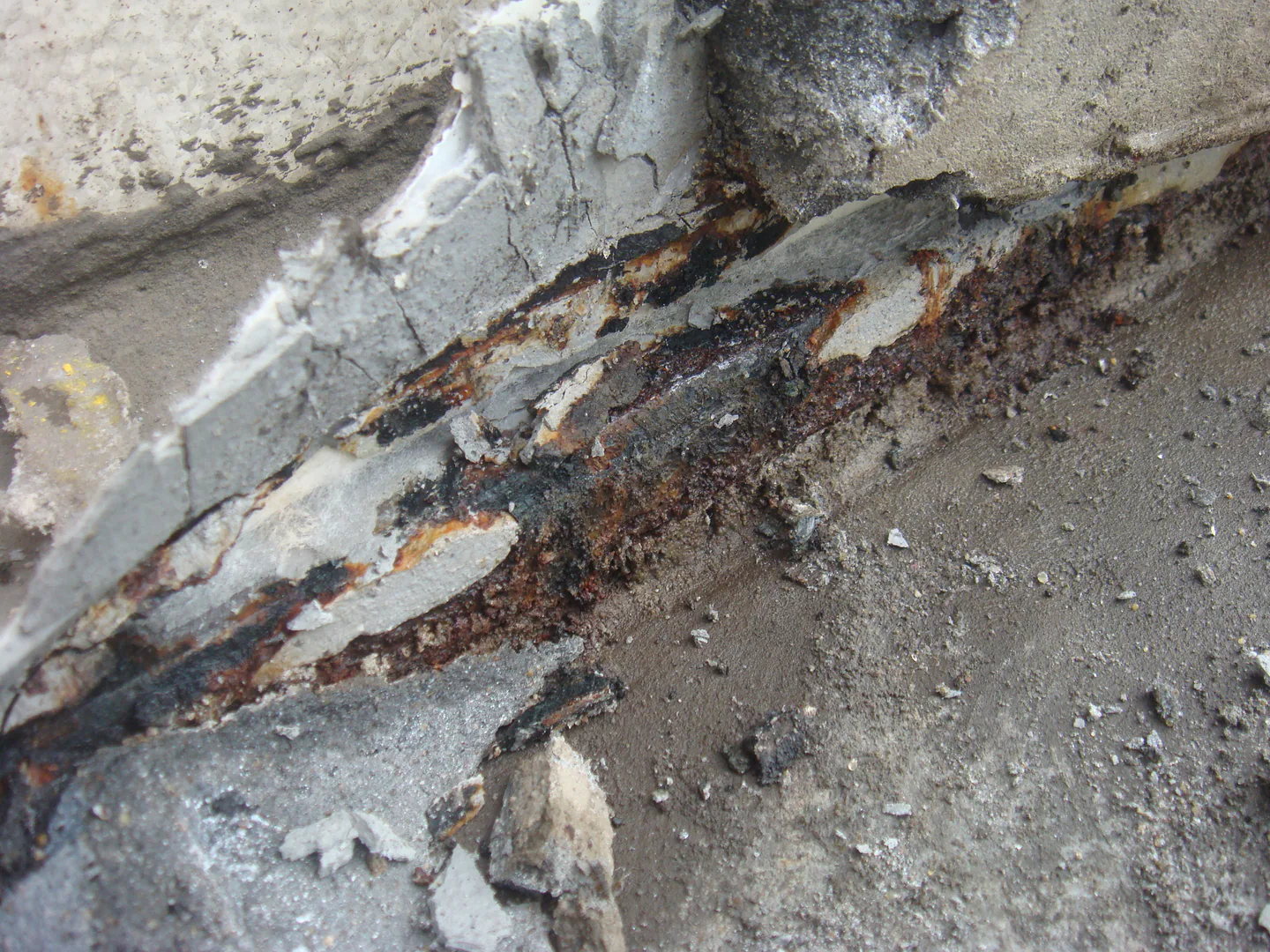

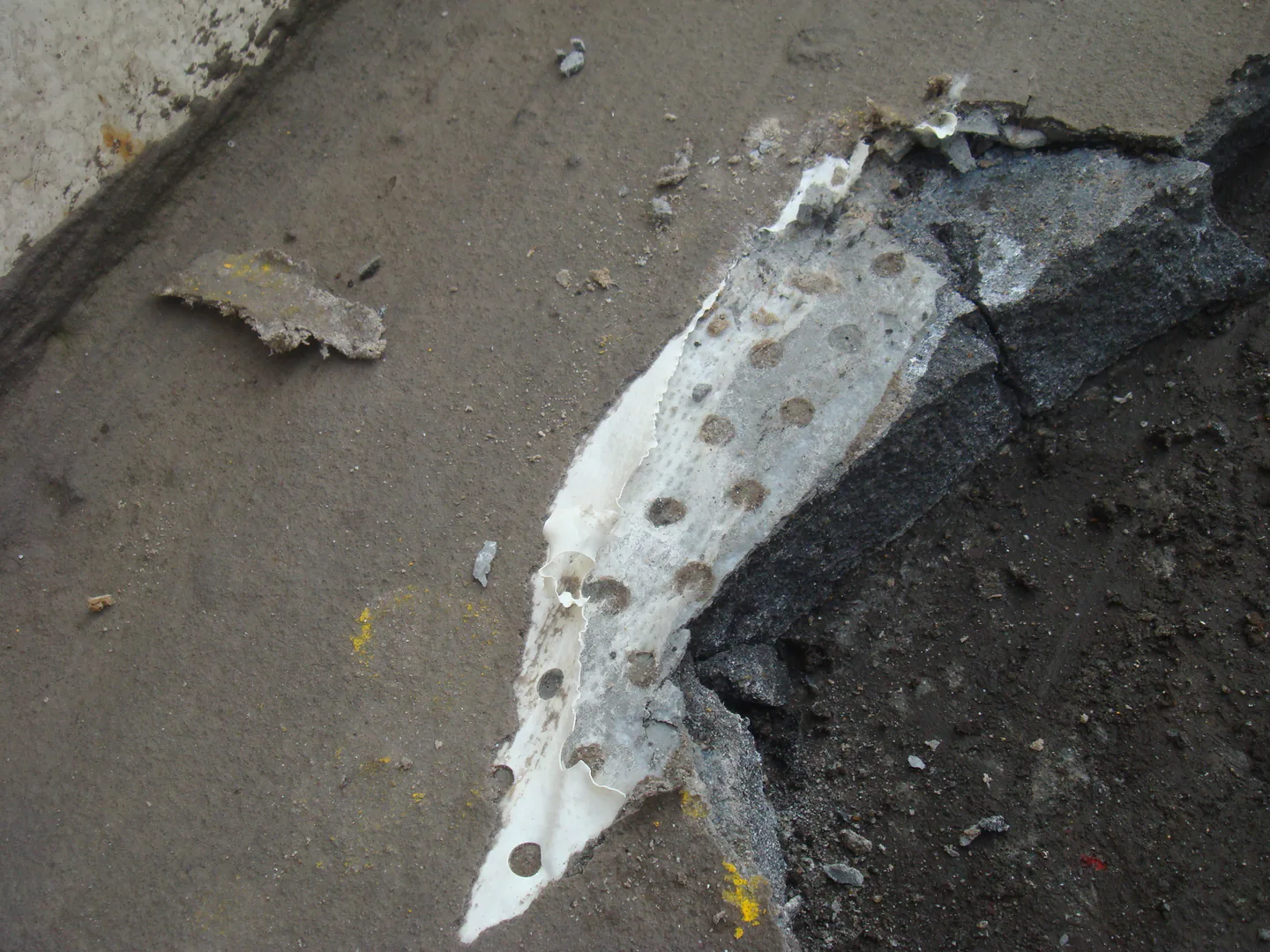

Before Construction
Before installation, the tank edge area showed typical protection challenges at the shell-to-foundation interface, including deteriorated coating areas, exposed transitions and locations vulnerable to water entry.
Project evidence

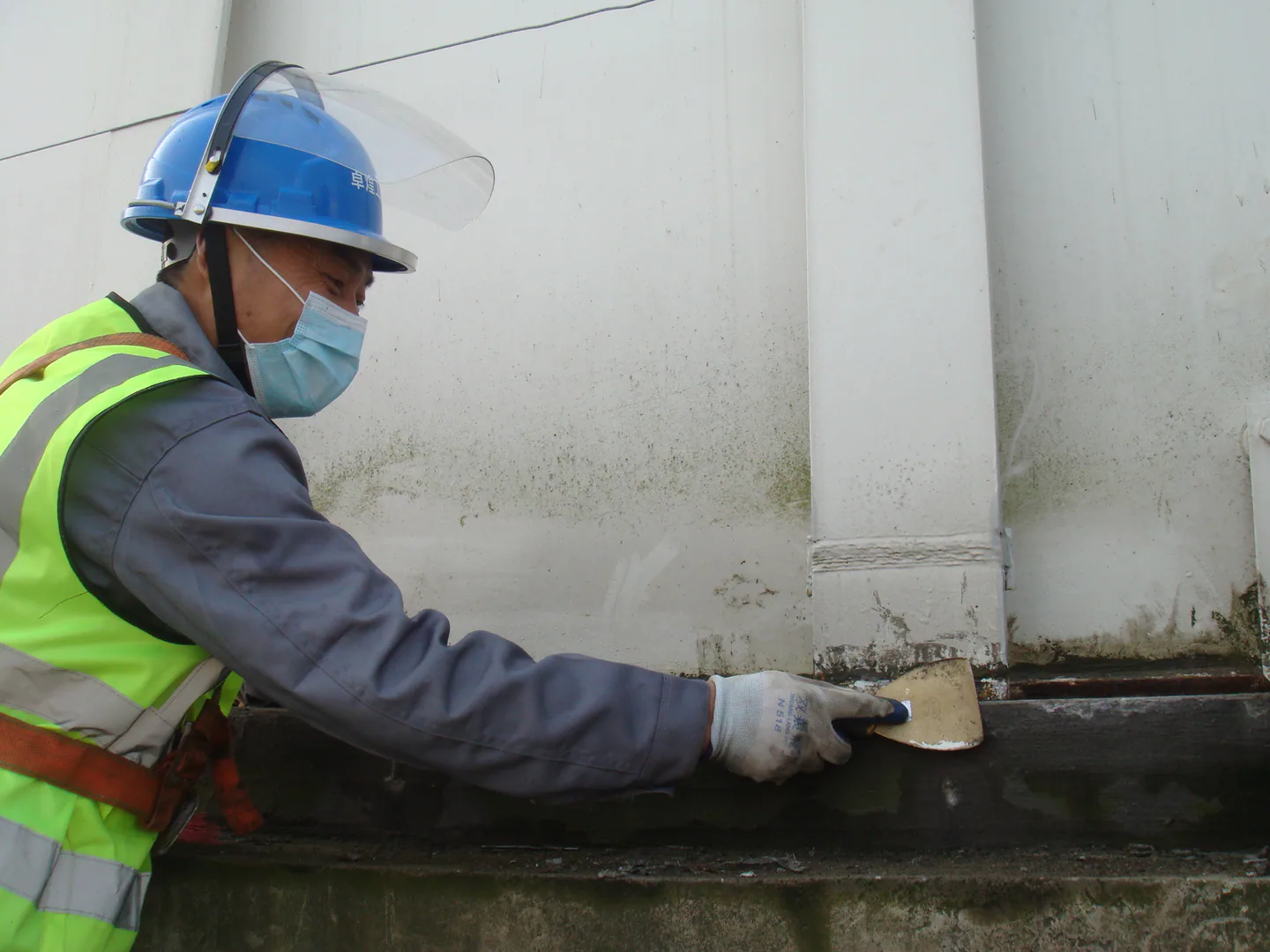

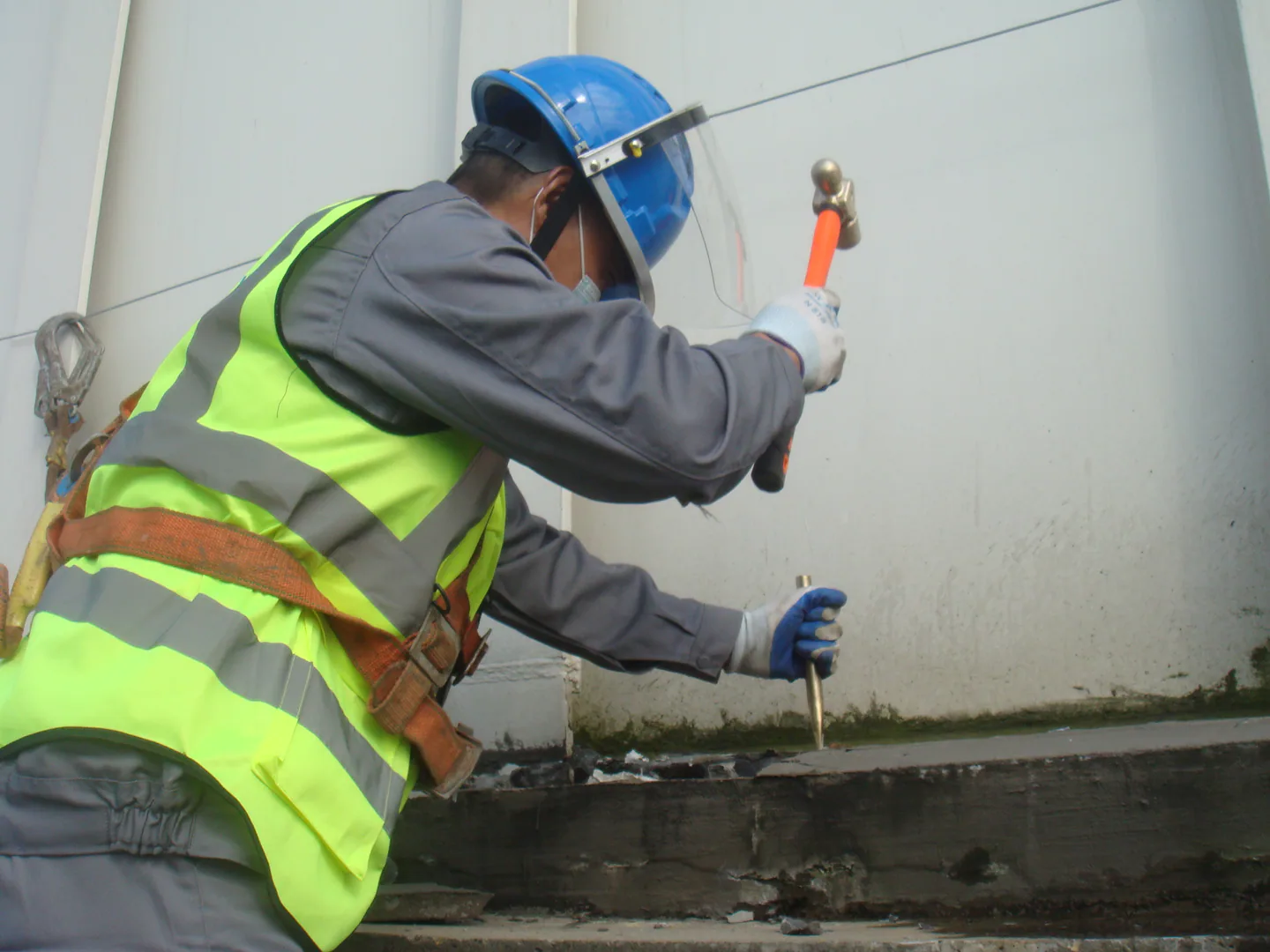

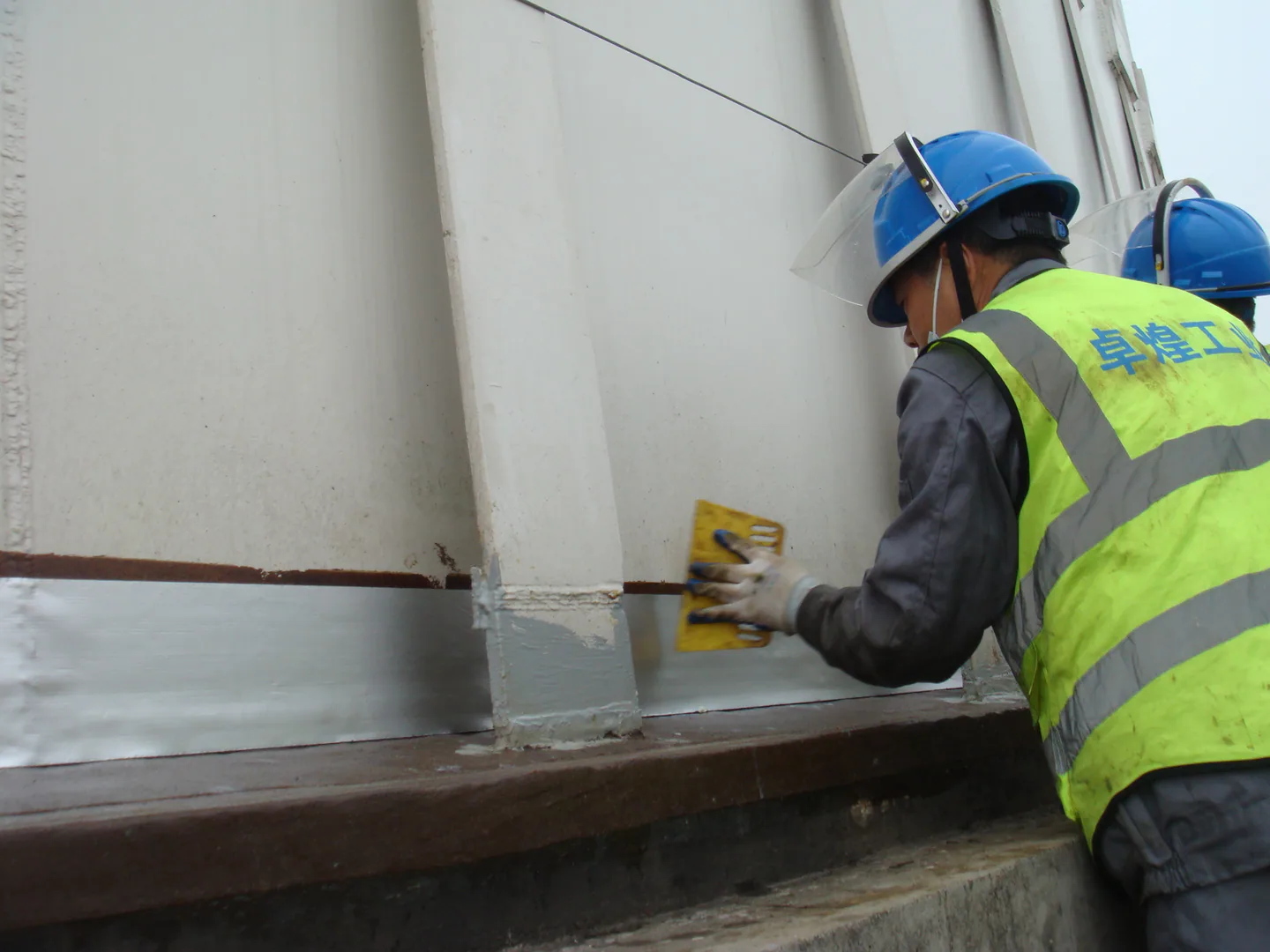

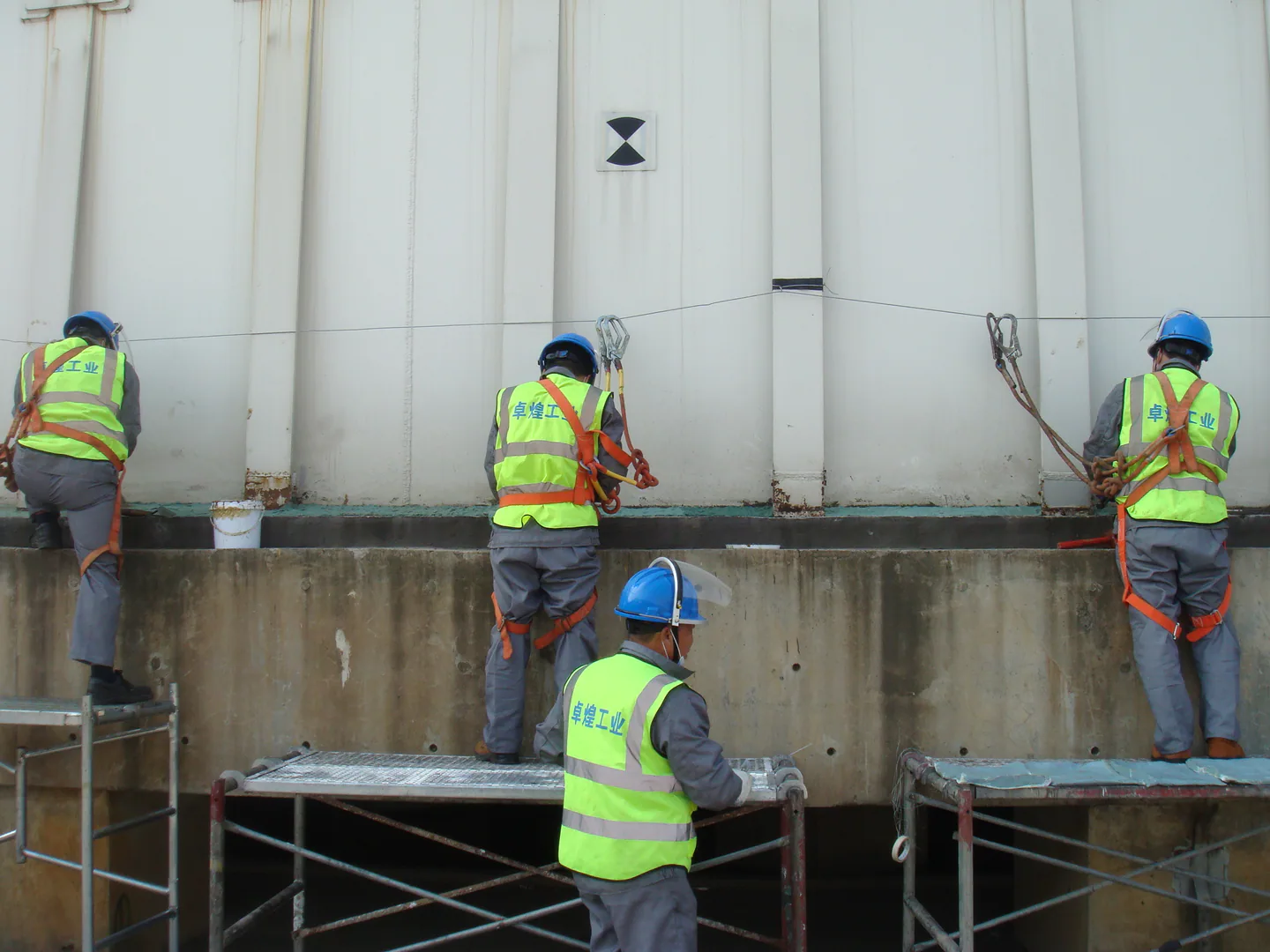

During Construction
The installation sequence included surface preparation, primer application, profiling of gaps and transitions with elastic mastic, application of petrolatum tape and installation of the metal outer protection.
- Surface inspection and removal of loose contamination and deteriorated material.
- Preparation of the tank shell and concrete foundation interface.
- Application of petrolatum primer.
- Filling of gaps and formation of a smooth transition using elastic profiling mastic.
- Installation of petrolatum tape across the protected edge area.
- Installation of the metal protective outer wrap.
- Application of the confirmed outer finishing layers.
Project evidence

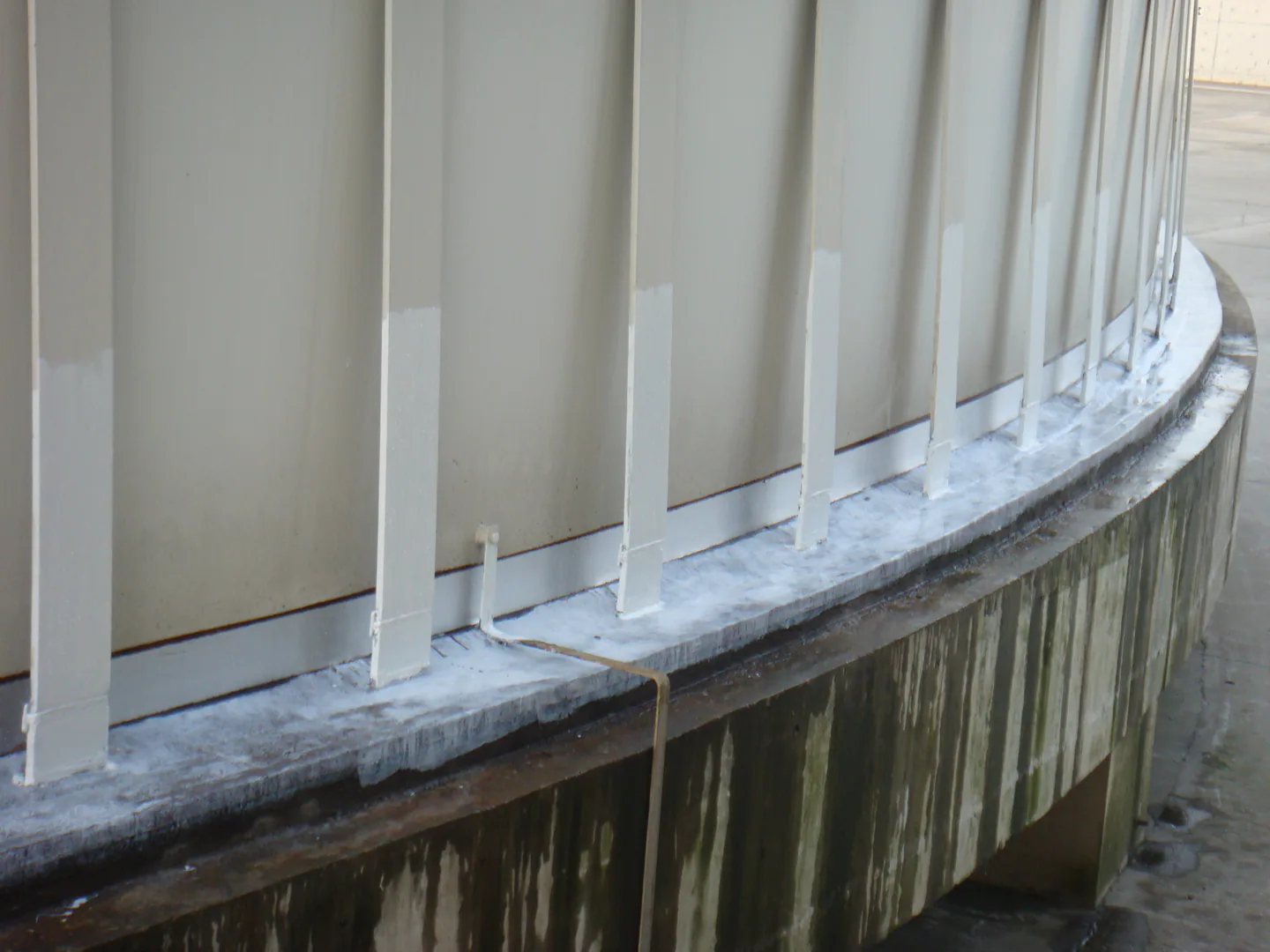

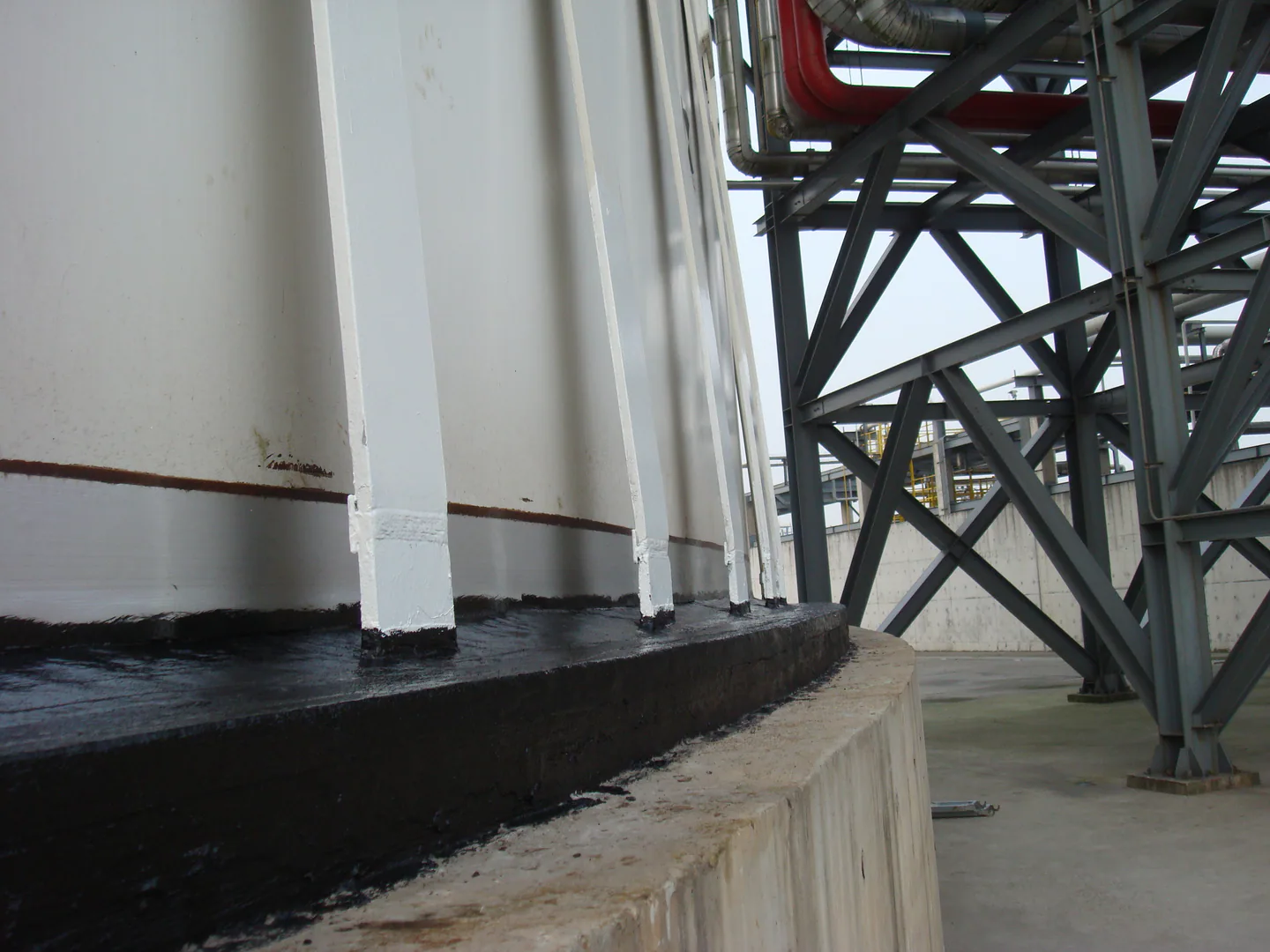

After Construction
After completion, the tank edge area was covered by the complete cold-applied protection system, with the transition between the tank shell and foundation enclosed by the protective layers.
Project evidence

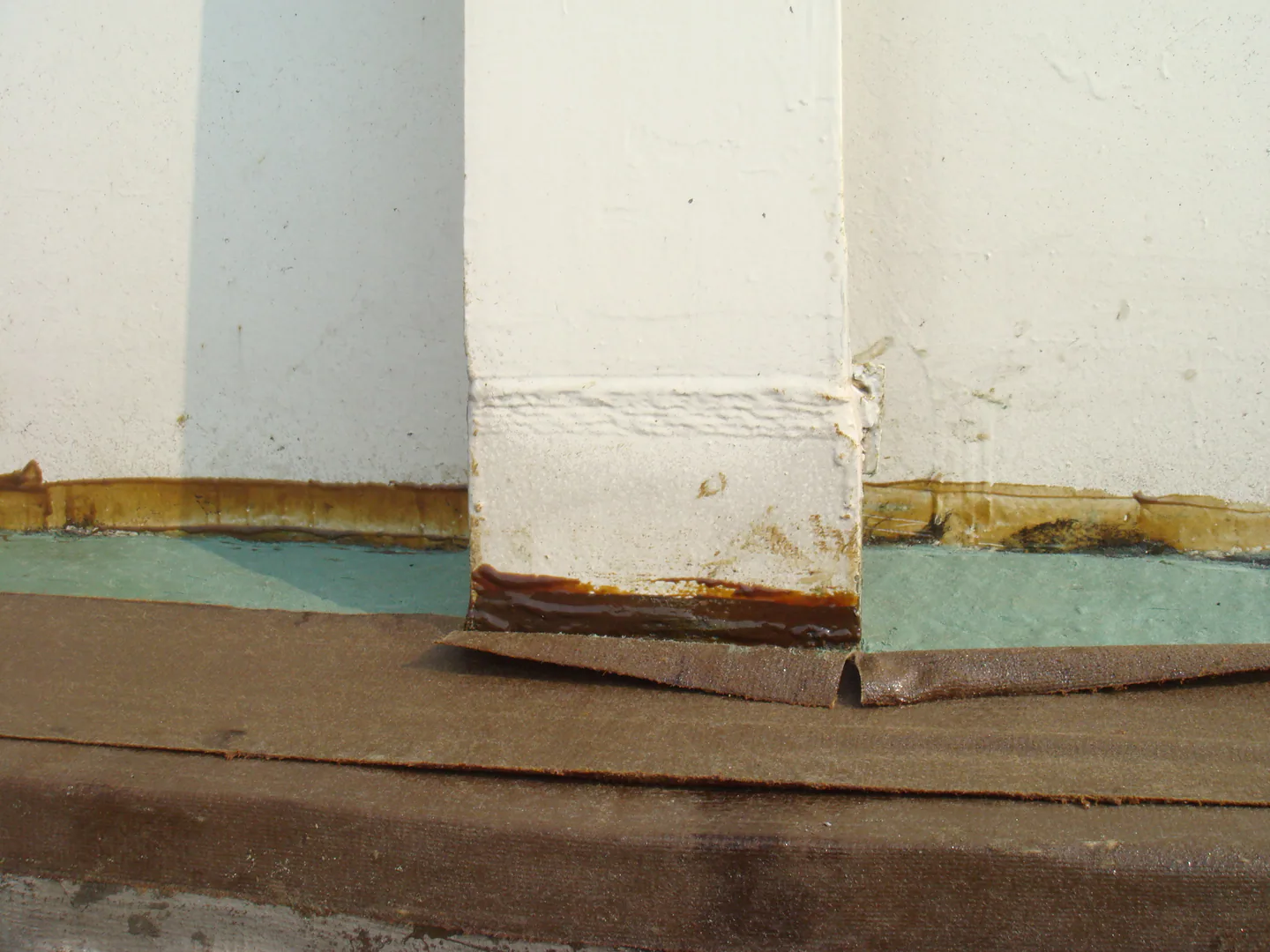

Project Details
Additional approved images show the project setting and visible protection details.
Project result
Confirmed follow-up
The client recognized the applied protection system and continued follow-up cooperation.
